Manual pre-processing of 3D objects into suitable meshes is a lengthy and laborious process. With alsim Data Cleaning Merge, the user only has to import the 3D data and start the pre-processing. All with just a single click.
You don’t have to worry about CAD formats either! We support all CAD formats to make your work effortless.
Some of the benefits of alsim Data Cleaning | Merge are as below:
AUTOMATE
manual preprocessing is obsolete
minimal user interaction required
powerful command line which can be combined to build scripted workflow
RELIABLE
prepares models for various complex simulations
reliable output which can be used directly for simulations
GUI view inputs, results, and performs modular operations as well as full workflows
SIMPLIFY
easy-to-use geometry-refiner and mesh-optimizer
training time – one day only
no cluster needed / runs on a desktop
MERGE ONLINE DEMO
BEFORE:

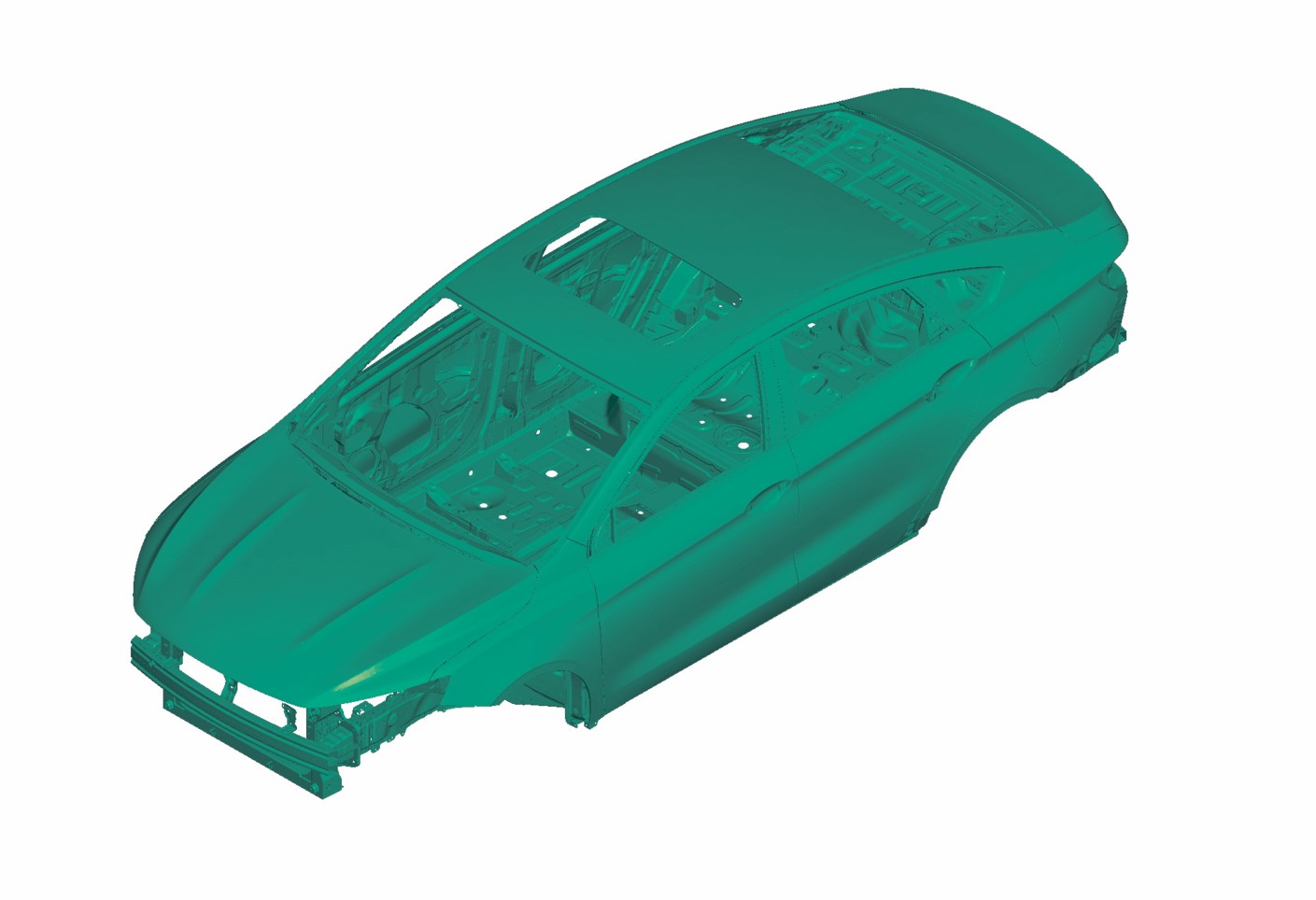

AFTER:
Start by selecting a demo function from above.
GET RESULT.
Merge
Merge different parts of the mesh to become one object
Remesh
Create a more efficient and smoother mesh
Repair
Repair broken parts of your mesh to ensure a valid outcome
Reduce
Reduce your mesh to increase performance
Sheet to solid
Transform plane objects to solid ones
Solid to sheet
Transform solid objects to plane ones
Prepare
Prepare your mesh for simulation, printing etc.
De-feature
De-feature your mesh

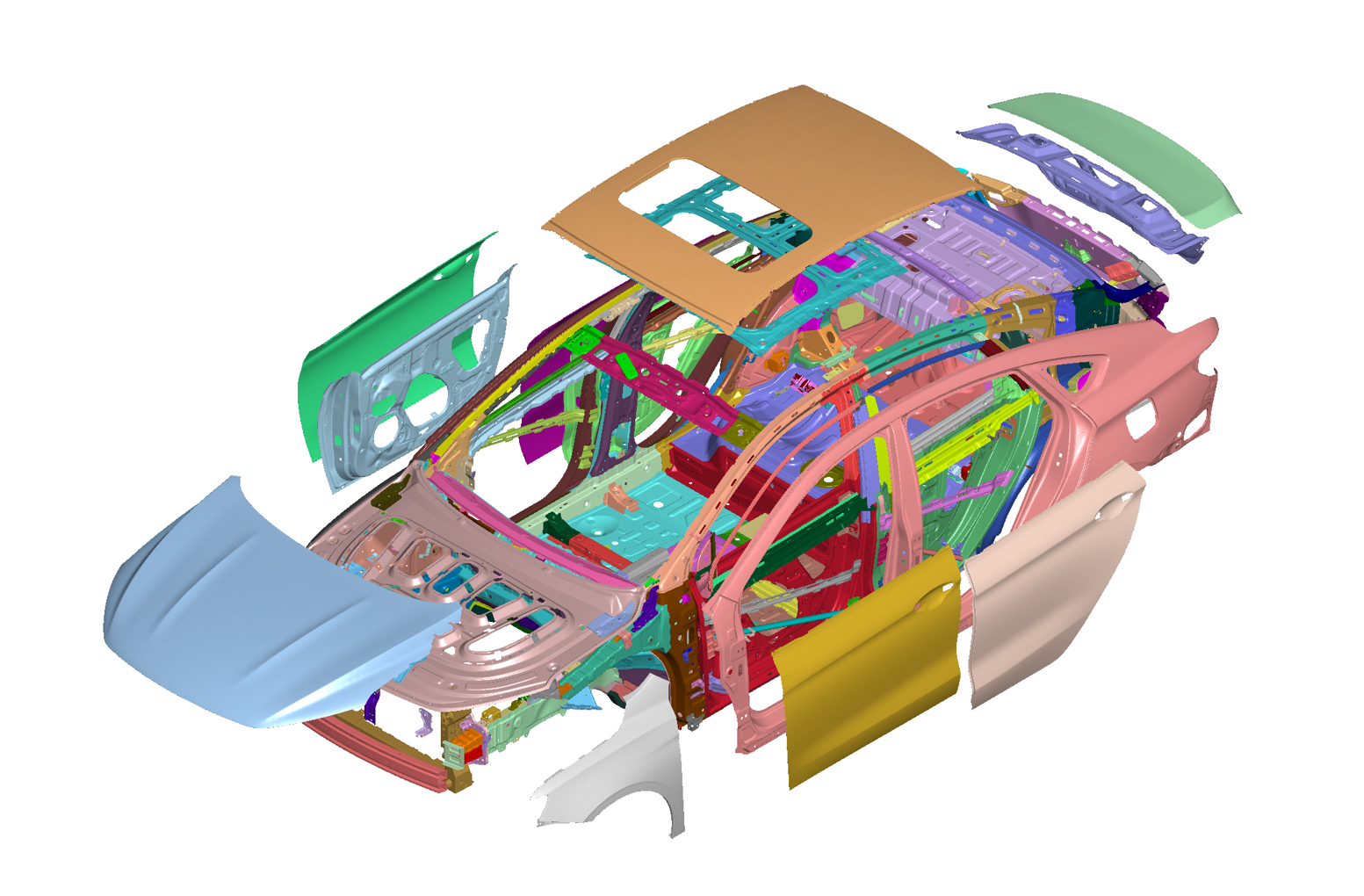

Before using Alsim Data Cleaning (exploded for illustration purposes)
